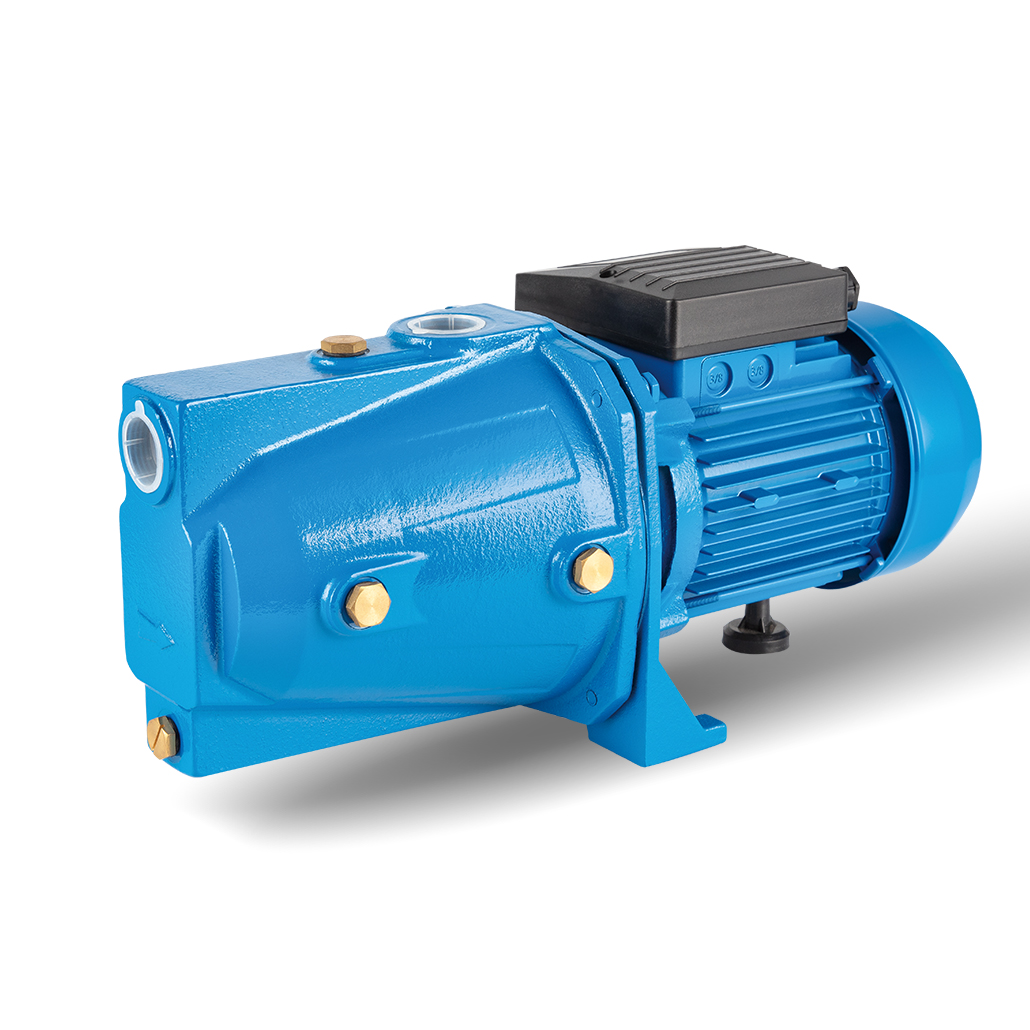

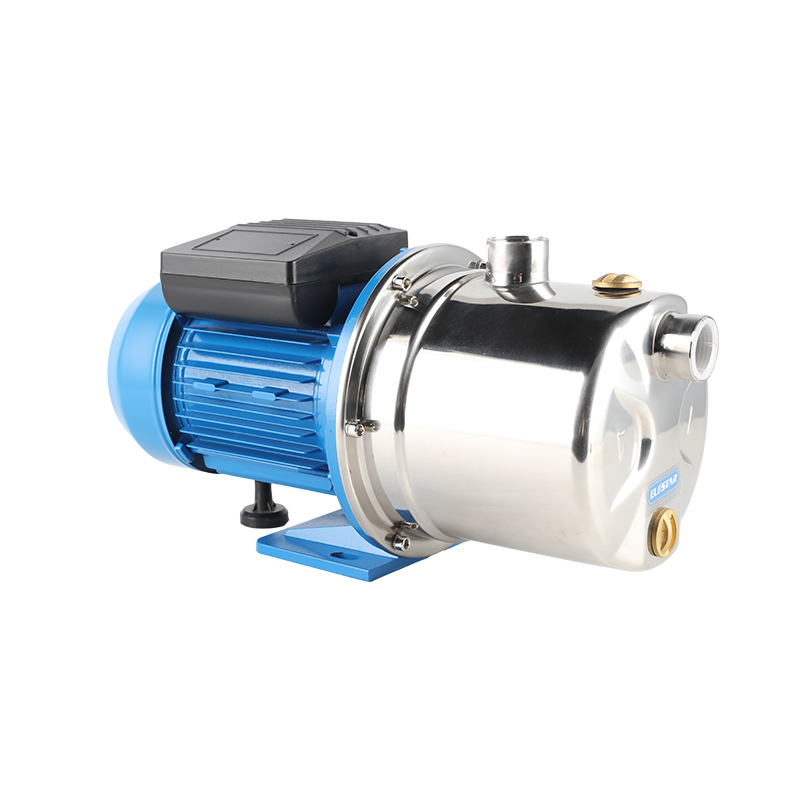

JSW/JSP JET Self Priming Electric Pump

DescriptionThese series self-priming JSW-10M pumps equipped with same dynamical system each. They are suitable to convey clean water and nonaggressive chemical fluids. even with liquid mixed with gas, from well in continuous work; they are also indicated to increase water pressure in centralized water systems, for small irrigation systems, for watering gardens, for washing systems with water jets, for fountains, etc. It is normally advisable to install a foot valve on the suction branch. WORKING CONDITIONS Max temperature of fluid up to 40℃. Max pressure: 8 bar. Max ambient temperature up to 40℃.STANDARD DATA AND EQUIPMENT Single phase 220v/50Hz, brass or plastic impeller, carbon steel motor shaft, with thermal protector inside. Other model and material such as three phase, 110V, 60Hz, dualvoltage, stainless shaft, etc, will be available upon request.PUMPSingle PhaseHeavy Duty Continuous WorkPump bodyCast IronImpellerBrass/Stainless Steel/Techno-polymer(P.P.O)Mechanical SealSIC/Ceramic/GraphiteMOTORMotor HousingAluminum AlloyShaftCarbon steel/stainless steelInsulationClassB/Class FProtectionIP44/IP54CoolingExternal Ventilation
